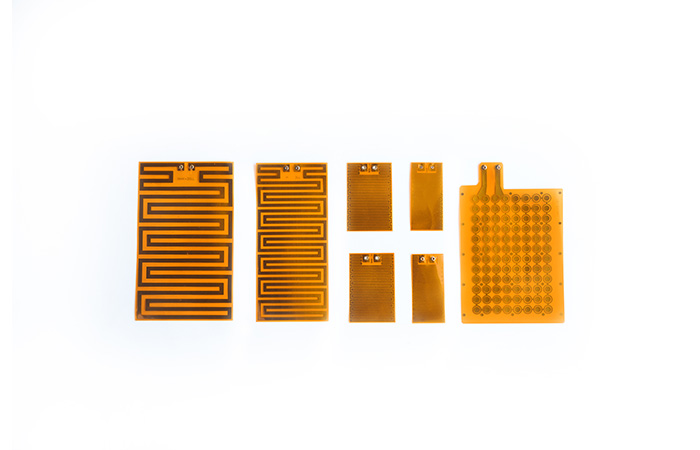

A thin, lightweight organic polymer film, polymide insulator provides excellent tensile strength, tear resistance and dimensional stability.
This heater is ideal for applications requiring low outgassing in a vacuum, or resistance to radiation, fungus and chemicals.
Polymer film is also very resistant to solvent.
And this is a thin, semitransparent material with excellent dielectric strength. These heaters are ideal for applications with space and weight limitations, or where the heater will be exposed to vacuum, oil, or chemicals.

Feature of product

  • Superior heat transfer with a excellent etched foil circuit pattern
  • Transparent material allows inspection of internal details
  • Resists radiation and fungus allowing its use in a wide range of application
  • Temperature as high as 200℃
  • Resistant to most chemicals : acids, solvents, bases
  • Laboratory research

Typical Application

  • Military,aerospace, where low outgassing properties are required
  • Laboratory research
  • Photographic equipment
  • Optical equipment
  • Computer equipment
  • Medical diagnostic instruments : Heat sample trays, cuvettes, reagent bottle, etc.
  • Protect aircraft electronic and mechanical devices against cold at high altitudes
  • Enable cold weather operation of outdoor electronics such as card reader or LCDs
Division Remarks
Construction Etched foil element laminated between layers of polyimide sheet
Temperature range -200 to 200℃
Material Polyimide film
Dielectric strength 1000VRMS
Resistance tolerance ±10%
Flexibility(min. Radius) 0.8mm
Maximum operating watt density At 25℃ in open air, 1W/cm2(7W/ in2)
Flammability rating Self-extinguishing
Maximum heater thickness 0.3mm
Insulation Resistance Minimum 10M ohms
